NOŽOVÁ ŠOUPATA
RBR-HC-NDE

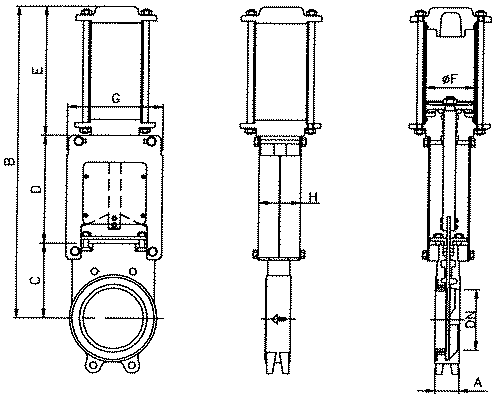

Pneumatický pohon 1-činný nebo 2-činný |
|
| DN |
A |
B |
C |
D |
E |
průměr
F |
G |
H |
Vstupy |
Zdvih |
|
Kg |
PN |
| Inputs |
Stroke |
|
| 50 |
50 |
435 |
115 |
140 |
180 |
80 |
117 |
68 |
1/4"
GAS |
67 |
|
10 |
10 |
| 65 |
50 |
470 |
120 |
155 |
195 |
80 |
132 |
68 |
1/4"
GAS |
82 |
|
11 |
10 |
| 80 |
50 |
536 |
130 |
170 |
236 |
100 |
150 |
72 |
1/4"
GAS |
102 |
|
13 |
10 |
| 100 |
50 |
596 |
145 |
196 |
256 |
100 |
170 |
72 |
1/4"
GAS |
121,5 |
|
15 |
10 |
| 125 |
50 |
654 |
155 |
223 |
276 |
125 |
197 |
80 |
1/4"
GAS |
142 |
|
20 |
8 |
| 150 |
60 |
732 |
176 |
254 |
302 |
125 |
224 |
80 |
1/4"
GAS |
167 |
|
24 |
8 |
| 200 |
60 |
883 |
204 |
318 |
361 |
160 |
291 |
90 |
1/4"
GAS |
219,5 |
|
36 |
8 |
| 250 |
65 |
1030 |
255 |
364 |
411 |
160 |
333 |
92 |
1/4"
GAS |
270,5 |
|
52 |
6 |
| 300 |
70 |
1203 |
305 |
424 |
474 |
200 |
395 |
95 |
3/8"
GAS |
317 |
|
69 |
6 |
| 350 |
90 |
1378 |
345 |
478 |
555 |
200 |
440 |
94 |
3/8"
GAS |
368 |
|
93 |
5 |
| 400 |
100 |
1547 |
400 |
554 |
593 |
250 |
543 |
101 |
3/8"
GAS |
417 |
|
153 |
5 |
| 500 |
110 |
1873 |
505 |
675 |
693 |
250 |
652 |
126 |
3/8"
GAS |
517 |
|
216 |
4 |
| 600 |
110 |
2217 |
620 |
795 |
802 |
300 |
752 |
120 |
1/2"
GAS |
617 |
|
327 |
3 |
Montáž mezi příruby PN10
|
|
|
|
