Products

BALL VALVES TRIVAL – VEXVE (PN 40 AND PN 25)

right.1One piece body fully welded design, carbon or stainless steel, PN 40 and PN 25, DN 15 – DN 300 (now already up to DN 800 PN 40 full bore, trunnion mounted-on request), connection: flanges, welded ends and threaded (up to DN 50). For temperatures up to 200°C.  Suitable for hot water, oils, air, natural gas, propane butane, some chemicals etc. Perfect tightness and long durability thanks to the floating ball design and spring semiloaded seats from carbonized PTFE. Maintenance free. Closing function in the standard and special regulating and control closing alternative with the W-cut curve in ball. Optional operating: lever, manual gear box, electric actuator, pneumatic actuator, hdraulic actuator (NEW!!).

See catalogue:
VEXVE BALL VALVES



BALL VALVES TRIVAL-VALTACO (max. PN 100)

right.2Three piece body heavy duty design, carbon or stainless steel (forgings and castings), stainless solid ball. PN 100 in DN 10-50, PN 40 in DN 50-150. Maximum temperature up to 250°C depending on the material variety. Seats available from: PTFE virgin, PTFE glass fibre, PTFE Carbon, PEEK, Delrin, Vespel – high durability against temperature, pressure and chemical aggressive load. Fully dismountable design, all parts can be replaced quickly and easily. Connecting: welded ends, socket ends, threaded ends (BSP, NPT), flanged ends on requirement. Available lever operated, with pneumatic actuators, electric actuators according to the wish of customer. Ideal for steam, condensate, hot water, air (even hydraulic), low vacuum, chemicals, ammonia gases, gas mixtures, cruel oil derivates, oils etc.
See catalogue:
VALTACO BALL VALVES



BALL VALVES – CZECH K 85, KM, C 05

right.3Ball valves with welded ends, flanged ends, threaded ends for PN 16, PN 40, PN 63 in DN 15 – DN 200 (according to the type) in grey cast iron, carbon steel and stainless steel, 1-piece, 2-piece, 3-piece body design. 2-ways and 3 ways. Various ball seals: PTFE virgin, PTFE-glass fibre, PTFE-carbonized etc.

See catalogues:
CZECH INDUSTRIAL VALVES – COMPLETE
Other catalogues pages on request



BALL VALVES FOR RAFINERIES

right.35Flanged and Wafer Type  Ball Valves ANSI 150-1500 lbs, according to API, DIN, BS, JIS Standards, reduced and full bore, Firesafe certificate,  split body, 2-, 3-piece body design, 2-way and 3-way, Carbon Steel, Forged Steel, Alloyes, Stainless Steel  according to ASTM Standards. DN 1“-DN 16“ (400 mm) depending on the type. Operated by hand lever,electric actuator, pneumatic actuator, manual gear box, hydraulic gear.

Detailed catalogues on request



BALL VALVES FULL STAINLESS STEEL-TW

right0021-, 2-, 3-piece body design Ball valves with welded ends, threaded, flanged and wafer type 2-way, 3-way, hand lever, manual gear box, electric actuator, pneumatic actuator in PN 16, PN 40, PN 63, PN130.Multi purpose applications for water, chemicals, gaseous fluids, air, oxygen (degreased), Nitrogen, Ammonia, oils etc.

See catalogue:
TRIVAL – JV, FULL STAINLESS BALL VALVES



BUTTERFLY VALVES WAFER TYPE, LUG TYPE, FLANGED WITH SOFT LINER

right.4

Butterfly Valves TRIVAL in PN 16-10 DN 32-1200 (on request up to DN1800) in various material executions (body, disc, liner): grey cast iron, ductile iron, carbon steel,  stainless steel, Aluminium, Bronze, PTFE. Liner: EPDM, Nitrile, Viton, Silicone, Natural rubber, Hypalon, Neopren, PTFE, Flucast. Wide scale of applications for various fluids up to temperature 180C. Regulating function available through smooth bevel plate for hand lever operation or controling with control actuators. High quality, functional and esthetic design. We provide electric and pneumatic actuators to the customers requests.

SPECIAL OFFER: body from GGG-50 as the standard for PN 16 in the whole range DN 40-DN600.

See catalogue:
TRIVAL – BUTTERFLY VALVES
Other catalogues pages on request



BUTTERFLY VALVES 2-EXCENTRIC AND 3-EXCENTRIC METAL/METAL SEALING SYSTEM

right00

TRI-CON  series D1, L1,S1,F1, I1 etc. made by ZWICK GmbH
100% tightness in both directions (according to the type)
Multipurpose valves-power sector, rafineries, chemical plants, district heating, steel mills,  etc.
PN 10-16-25-40-63-160-250
DN 65-DN 2200

VEXVE Butterfly Valves for district heating sector DN 300-DN 1200 in PN 25

See catalogue:
TRIVAL – VEXVE – BUTTERFLY VALVES
TRI-CON – Alfa serie
Other catalogues pages on request



GLOBE VALVES FOR CLOSING, REGULATING AND CONTROL

right.5

Carbon Steel, Stainless Steel, Cast Iron Globe Valves for closing, regulating and control
DN 15-DN 200. ČSN, DIN, ANSI Standards.

See catalogue:
CZECH INDUSTRIAL VALVES – COMPLETE
Other catalogues pages on request especially:
SELECTED INDUSTRIAL VALVES FOR ENERGETIC AND CENTRAL HEATING SECTOR

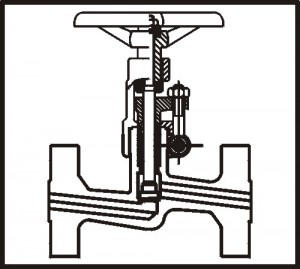

SELECTED INDUSTRIAL VALVES FOR THE ENERGETIC AND CENTRAL HEATING SECTOR

right9High pressure Gate Valves, Globe Valves, Non-Return Valves etc.

See catalogue:

SELECTED INDUSTRIAL VALVES FOR ENERGETIC AND CENTRAL HEATING SECTOR





GLOBE VALVES AND SWING CHECK VALVES FLANGELESS AND FLANGED  PN 16, PN 40

right001For water, steam, gas, chemicals and other fluids according to the type AVL, SČA, Gestra, Ritag, JMA,MSA

See catalogue:
GLOBE VALVES AND SWING CHECK VALVES
CZECH INDUSTRIAL VALVES – COMPLETE



GATE VALVES

right11Yoke Type Rising Stem  and  also Non-Rising stem Gate Valves from Grey Cast Iron, Ductile Iron,  Carbon Steel, Forged Steel, Stainless Steel,  Alloyed Steel for PN 6, PN 10, PN 16, PN 40, PN 63, PN 100, PN 160, PN 250. DN 40 – DN 800 according to ČSN, DIN and API (ANSI) Standards.

See catalogue:
CZECH INDUSTRIAL VALVES – COMPLETE
Other catalogues pages on request



STRAINERS

right12Flanged, Welded ends, Threaded Strainers for PN 16, PN 40, PN 100 in DN 15- DN 300 (according to the type). Brass, Cast Iron, Carbon Steel, Stainless Steel

See catalogue:
CZECH INDUSTRIAL VALVES – COMPLETE



SAFETY VALVES

o_07pojventilSafety Valves Flanged for PN 16, PN 40, PN 100. Safety Valves Threaded Spring loaded AVL and Diaphragm Types Duco. We provide setting to the required opening overpressure and repairs including the corresponding certificates

See catalogue:
CZECH INDUSTRIAL VALVES – COMPLETE
Other catalogues pages on request



STEAM TRAPS

o_09odvadecSteam Traps: Ball Float,  Bimetallic, Thermostatic, Bucket, Thermodynamic designs in PN 16, PN 40, PN 64, PN 100, PN 160, PN 250.SČA, GESTRA AWH (ARI), SPIRAX.

See catalogue:
CZECH INDUSTRIAL VALVES – COMPLETE
GESTRA
Other catalogues pages on request

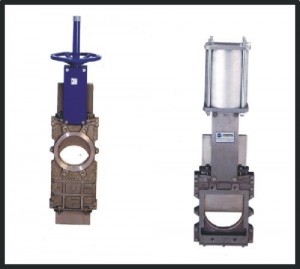

KNIFE GATE VALVES

right91

Various material executions-Ductile Iron, Stainless Steel, sealing surfaces metal/metal, or EPDM, Nitrile Rubber, PN 10 according to DIN and ANSI. DN 50 – DN 1000
Manual wheel operation, electric or pneumatic actuators

See catalogue:
KNIFE GATE VALVES



BRASS VALVES WITH THREADED ENDS

o_10mosazBall Valves in PN 16 (on requirement PN 25) in DN ¾“-DN 4“, Strainers, Gate Valves, Swing Check Valves (Eura), Air Ventilating Valves, Radiator Threading etc.

Detailed catalogues on request



PNEUMATIC ACTUATORS

right16Pneumatic actuators 2-acting and 1-acting for ball valves and butterfly valves DN 15- DN 700 mm. Standard and Special Execution. Rich equipment: Limit Switch Boxes, Solenoid Electromagnetic Valves 3/2 and 5/2 Ways Namur Standard, Positioners etc.   Brands: PRISMA, FLOWSERVE, SMC etc.

See catalogue:
PRISMA PNEUMATIC ACTUATORS
Other catalogues pages on request



ELECTRIC ACTUATORS INCLUDING EQUIPMENT AND MANUAL GEAR BOXES

right17

Quarter Turn and Multi Turn Electric Actuators brands ZPA Pečky, AUMA, REGADA, BERNARD, SIEMENS, BELIMO etc. Equipment: Inductive and Resistive Transmitters, Positioners, Local Settings AUMA MATIC etc.
Manual Gear Boxes Mastergear and Alecto and others for Industrial Valves.

ZPA PEČKY
Other catalogues pages on request



PUMPS AND PUMPING EQUIPMENT

o_08cerpactechCirculating Heat Pumps for heating systems Grundfos, KSB-RIO, WILO, NTV.  Centrifugal Pumps, Sludge Submersible and Multistage Pumps, Controlled Volume Pumps, Chemical Pumps etc.

Catalogues pages on request



STAINLESS STEEL PROGRAMME

o_11nerezStainless Steel Pipes – Welded and Seamless, various materials and thicknesses. DN 8 – DN 1000 mm. Stainless Steel Components: Reducers, Bends, Elbows,  Collars, Heads and End Plates, T-pieces, Threaded and Welded Sockets, Male and Female Fittings, Stainless Steel Flanges Welding Neck, Flat, Blind, Threaded, Rottary etc.

See catalogue:
STAINLESS PROGRAMME



FLANGES, REDUCTIONS, HEADS, END PLATES, ELBOWS, BENDS

o_12priruby

Flanges Welding Neck, Flat, Blind, Rottary, Threaded according to ČSN, DIN, ANSI, BSStandards or to drawing spec., PN 6- PN 320 and DN 15- DN 1200, Carbon Steel, Stainless Steel, Alloy Steel. Certificates acc.to requirement. We provide rafinerie quality.
Pipe Reductions, Heads, End Plates various PN, Standards, Thicknesses etc.
Elbows and Bends in various curving Angles, various materials and Standards, Forged, Welded.

See catalogue:
FLANGES ACCORDING TO ČSN, DIN, ANSI
PIPES AND PIPE PARTS
PIPE SUPPORTS



WATER TREATMENT SPECIALTIES-SOFT SEATED GATE VALVES, HYDRANTS, SELF TAPPING SADDLES AND OTHER TYPES OF VALVES AND ACCESSORIES

o_13vodarenske

Soft Seated Rubber Coated Wedge Gate Valves from Ductile and Cast Iron.
Hydrants Underground and Above Ground in PN 10, PN 16 according to ČSN and DIN.
Ductile and Cast Iron Flanged Fittings, Self Tapping Saddles for PE and Cast Iron Pipes.
Street Covers of various sizes. According to ČSN and DIN Std.
Stem Extension for Various Valves and Tapping Saddles.
Suction Strainers with and without built in Swing Check Valves.
Compensators and Bellows (Rubber, Carbon Steel and Stainless Steel).
Gaskets between Flanges and Gland Packing O-Rings, Ropes for Flanges, Valves and Pumps.

See catalogue:
CZECH INDUSTRIAL VALVES – COMPLETE
PRESSURE CAST AND DUCTILE IRON COMPONENTS



PLASTIC AND BRASS SYSTEMS PHILMAC, STP, FV ETC.

o_15philmacCompression Fittings: Complete  Systems for Mechanical Connecting of Pipes from PE, Galvanized Steel, Lead, Copper: Joiners, End Connectors, Reductions, T-Pieces, Elbows, Blinders. Plastic and Brass Threaded Fittings with BSP Threads. PHILMAC, STP. The Complete Systems for connecting PPR Pipes by welding-FV-Plast.

See catalogue::
PHILMAC – PLASTIC PROGRAMME
PPR – PLASTIC PROGRAMME



PRESSURE, TEMPERATURE, WATER  MEASURING EQUIPMENT AND ACCESSORIES

o_14mericiPressure Gauges, Thermometers, Water Meters with Threadings. Welding Pipe Unions, Welding and Threaded Coiled Condensation Loops, Flat Sealing,  Nipples, Testing Pressure Gauge Gland Cocks and Globe Valves 2 and 3 ways etc., Thermometers and Accessories.

See catalogue:
CZECH INDUSTRIAL VALVES – COMPLETE
Other catalogues pages on request



REPAIR CLAMPS

right24

Pipe Repair Clamps with Lock from Ductile Iron, Stainless Steel Body, Sealing with Rubber, Galvanized Bolts and Nuts, Rating PN 12 (tested for 16 bar).
Repair Clamps 1-piece – DN 15 – DN 200
Repair Clamps 2-piece – DN 200- DN 500
Repair Clamps 3-piece – DN 500- DN 800
Repair Clamps 4-piece – DN 800- DN1100

See catalogue:
REPAIR CLAMPS



PRAHER

praher_vyrobk4

PVC, PP, PVDF, ABS a ASA-GR industrial valves. Product are from 3 well established series: ENERGY, EVOLUTION, SYSTEM.
Wide range of items includes typical products like 2-way and 3-way ball valves, diaphragm valves, butterfly and check valves, automatic valves with pneumatic or electric actuator, control units, PVC-U fittings and pipe systems.

See catalogue:
PRAHER

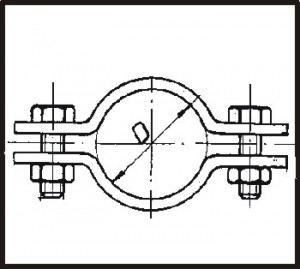

PIPE SUPPORTS, CLAMPS, HOLDERS, FITTINGS

right.25

Pipe Supports, Clamps, Pipe Holders, Suspension Clips, Clips, Slide Supports, Anchor Stands, Anchor Clips.
Steel and Galvanized Steel Fittings

See catalogue:
PIPE SUPPORTS
